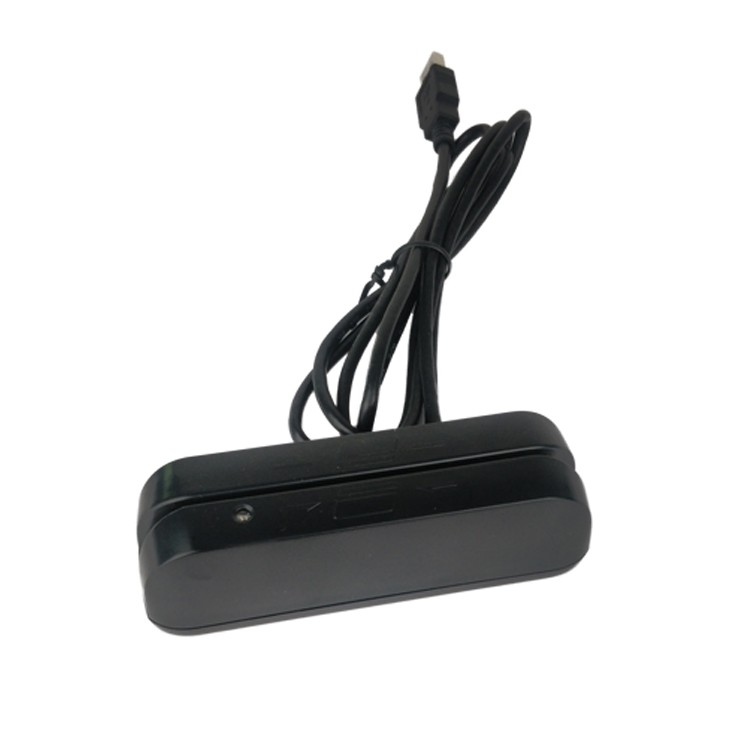

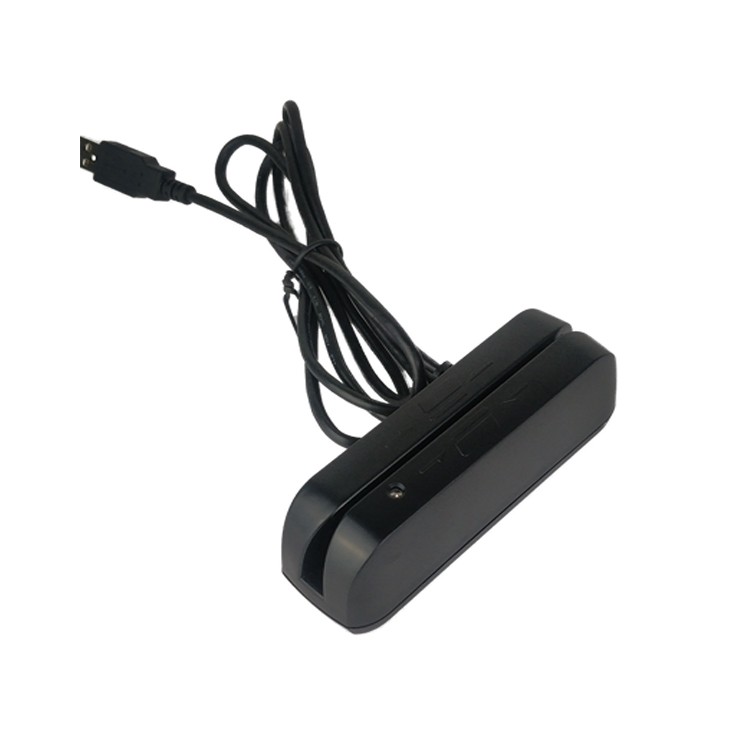

Dual Heads Magnetic Card Reader F780

  • Model: F780
  • Interface: RS232/USB VCP/USB HID
  • Power supply: 5V or 5V-24V optional
  • Dimension: 116mm×36 mm×40mm
  • INQUIRY

Overview

F780 Dual face magnetic card reader is developed under 32bit Cortex-M3 platform with working frequency 72MHz. It can read and decode the magnetic card , credit card compatible with ISO7811 standard rapidly and accurately.

F780 works under RS232 interface or USB interface. With the powerful setting utility , users can set the output format flexibly and expediently. F780 can be used in shopping mall , supermarket ,CVS , as well as being set into Kiosk terminals such as ATM, self-service terminals.


Technical Features

l  Power supplyDC 5V/±10%

l  Power Mode

    1) From RS232 of some terminals

    2) From USB port.

    3) From external power adapter.

l  Electric Currentstand by status :≤80mA . Crest value under working≤100mA

l  Interface :RS232 , USB

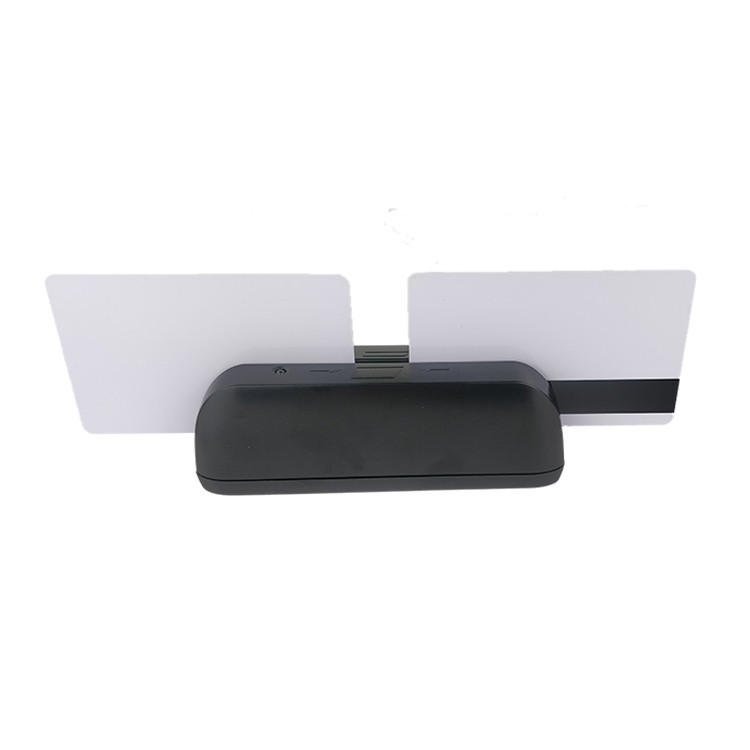

l  Magnetic Card reading features

Support dual face swipe with two magnetic heads, support dual direction swipe.

Support ISO/IEC7811 standard.

Card swiping speed10cm/s~120cm/s.

Swiping lifetime: 1,000,000 passes.

l  Working EnvironmentTemperature -10~50,   Humidity 10%~90%.

l  Support USB1.1/USB2.0 standard.

l  DimensionL×W×H):116mm×36 mm×40mm

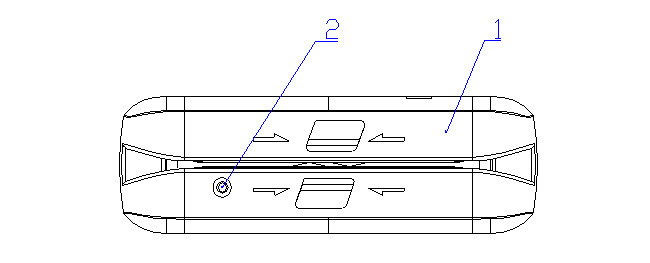

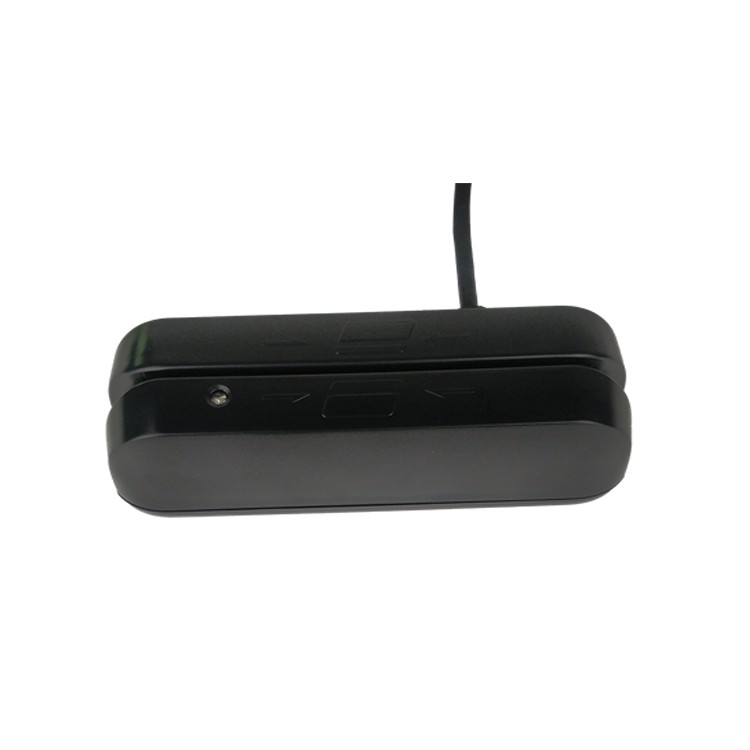

Structure Features

Dual Heads Magnetic Card Reader F780(图1)


1. Main housing

2. Status LED (blue and red)



DIP Switch Definition

There is a DIP Switch on the main board. The settings definition is following:



SW1

SW2

Interface Mode

ON

ON

USB Virtual   COM Port

ON

OFF

USB   HID Mode

OFF

ON

RS232   Mode (115200,8,N,1)

OFF

OFF

RS232   Mode (9600,8,N,1)



SW4

Status

ON

F/W   updating mode

OFF

Working   mode

SW3 has no definition.

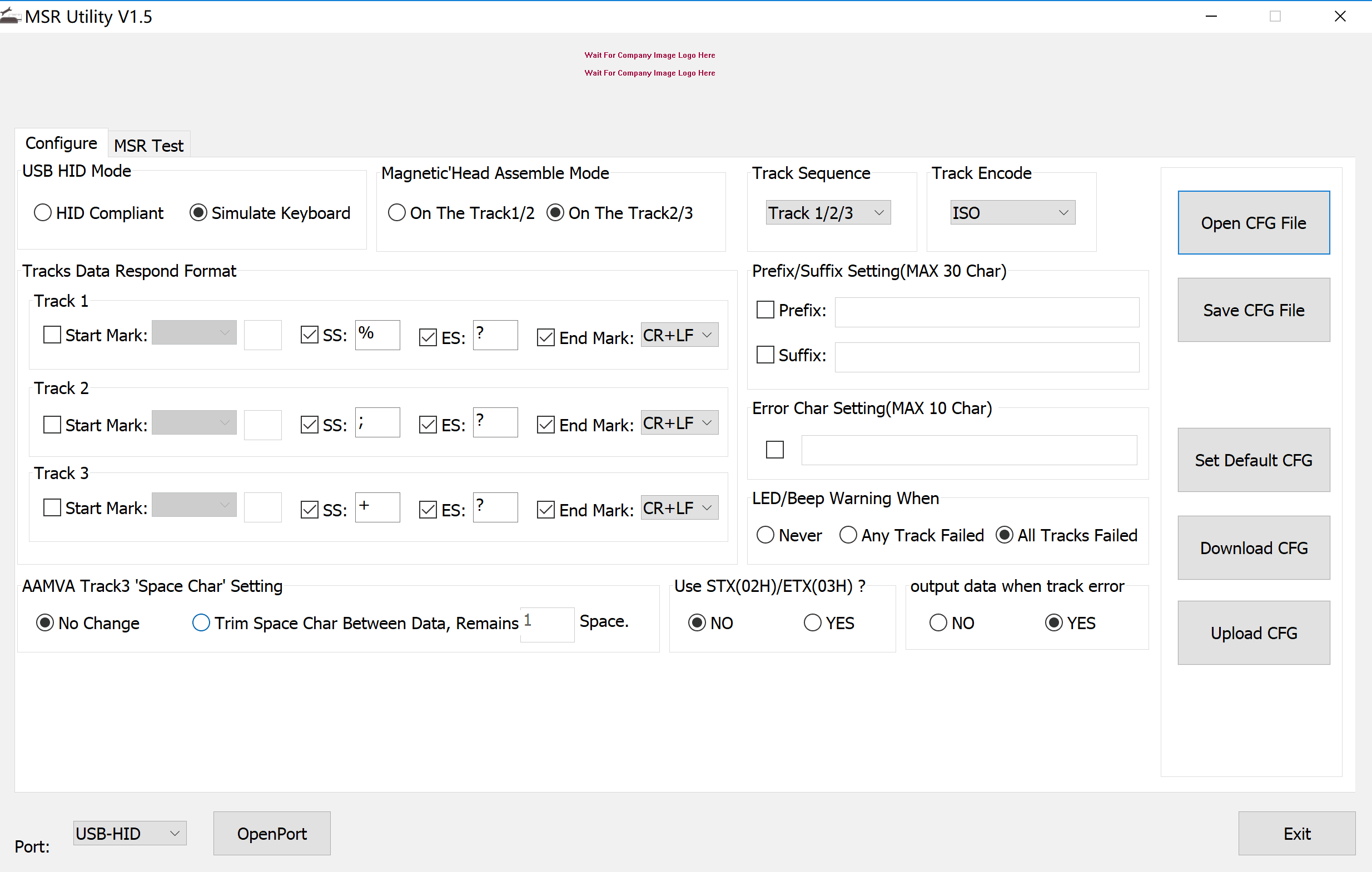

Setting Utility Layout:

Dual Heads Magnetic Card Reader F780(图2)

Click to download Setting Utility
